X123 – 3 Way High SPL Full Range 12″

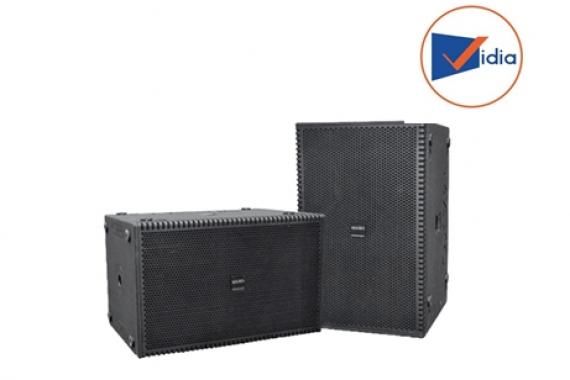

Hình ảnh của X123
Thông số kỹ thuật của X123
DRIVER (LF): | 1×12″ Midwoofer driver |
DRIVER (MF) | 1×6.5″ Midrange driver |
DRIVER (HF) | 1.75″ voice coil compression driver |
FREQUENCY RESPONSE(CUT model) | 100Hz-20K Hz |
FREQUENCY RESPONSE(standard) | 60Hz – 20KHz |
MAX. SOUND PRESSURE | 130 dB |
NOMINAL IMPEDANCE | 8 Ohms |
NOMINAL DISPERSION ANGLE | 90 độ x 40 độ |
POWER HANDLING (RMS/peak 10ms) | 400W/1600W |
CONNECTIONS | 2 x Speaken NL4 |
PIN CONNECTION | LF+.-;1+.1-.Link thro;2+.2- |
DIMENSIONS | (H)708mm x (W)440mm x (D)450mm |
WEIGHT | 37 Kg |
