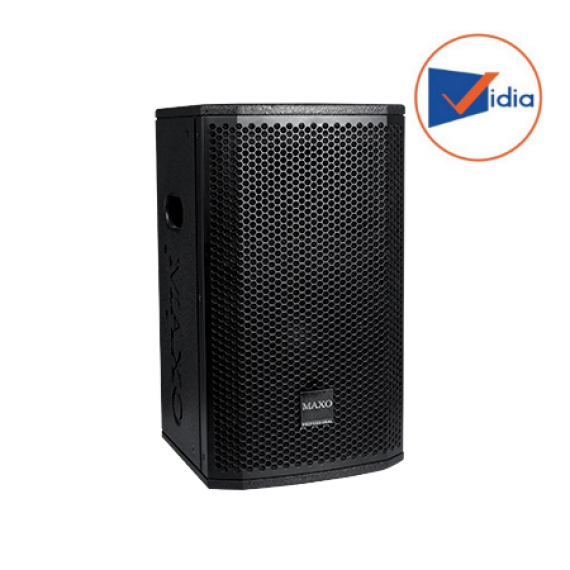

LOA MAXO S10 Full Range 10″
Hình ảnh của S10
Thông số kỹ thuật S10
FREQUENCY RESPONSE | 60Hz-20K Hz±3dB |
DRIVER (LF): | 10″/2.6″ voice coil LF driver |
DRIVER (HF) | 1.35″ voice coil compression driver |
POWER HANDLING (RMS/peak 10ms) | 200W RMS. 800W PEAK |
SENSITIVITY | 97dB(1W@1M) |
MAXIMUM SPL | 120dB RMS,126dB PEAK |
NOMINAL IMPEDANCE | 8 Ohms |
CROSSOVER | 2K Hz |
CONNECTIONS | 2x Speakon NL4 |
DIMENSIONS | (H)533mm x (W)305mm x (D)355 mm |
WEIGHT | 17 Kgs |
