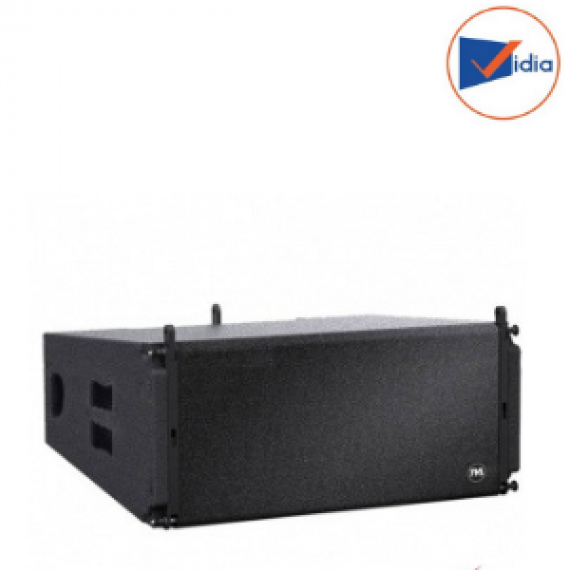

ARRAY MK 36

THÔNG SỐ KĨ THUẬT

• The inner quality of the MK36 is spoken for it - six units operate in a box of only 70 cm wide and 31 cm tall. The middle of the box is the midrange horn, driven by two 8-inch cone speakers. The midwoo unit consists of two 1.4-inch compression drive units that drive the newly developed 10-degree vertical coverage of the waveform, mounted on the same axis as the IF unit. In the horizontal coverage angle, you can choose 80 degrees and 120 degrees. The low-frequency playback is responsible for two 10-inch long-stroke woofer units. It is worth mentioning that, at 400Hz below the four cone wheel loudspeaker at the same time force, so as to ensure a solid low-frequency and strong impact.



  Components单元	HF: 2 x 3"; MF: 2 x 8"; LF: 2 x 10"
  Frequency Response频响	60 - 18kHz(±3dB)
  Sensitivity(1W/1M)灵敏度	110dB
  Maximum Peak SPL最大声压级	141dB
  Rated Power(RMS)额定功率	MHF: 800W; LF: 1000W
  Peak Power(PEAK)峰值功率	MHF: 1600W; LF: 2000W
  Impedance(Ohm)标称阻抗	8 Ohm
  Crossover分频点	/
  Dispersion Angle(-6dB)指向性	H 80 ° or 120° x  V 10°
  Connectors链接插座	2xNL4 Speakon
  Riggings吊挂硬件	/
  Enclosure Material板材材质	高强度加厚夹板
  Cabinet Finish表面处理	德国励宝环保加硬水性漆
  Protective Grille面罩	黑色钢网
  Dimensions (mm)箱体尺寸	700 x 580 x 310 mm
  Net. W.净重	41 kg
