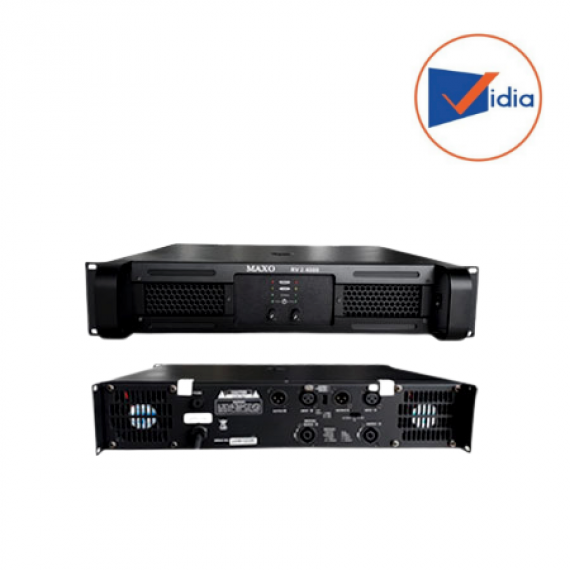

RV-2.4000
Power Amplifier 2 channels
Hình ảnh của RV-2.4000
Thông số kỹ thuật của RV-2.4000
IMPEDANCE 8 Ohms | 800W * 2 |
IMPEDANCE 4 Ohms | 1100W * 2 |
BRIDGE 8Ohms | 2200W |
FREQUENCY RESPONSE | 20 Hz – 20 kHz |
INPUT CONNECTOR | XLR input |
OUTPUT CONNECTOR | Speaker conneting socket |
POWER SUPPLY | 200V–240V/ 50Hz – 60Hz |
MAX POWER CONSUMPTION | 3000W |
SIZE | 48.3 * 41.2 * 8.8 cm |
NET WEIGHT | 18.5 Kg |
STEREO POWER 8Ω | 800W x2 |
STEREO POWER 4Ω | 1200W x 2 |
STEREO POWER 2Ω | 1600W x 2 |
BRIDGE 8Ohms | 2400W |
BRIDGE 4Ohms | 3200W |
SIGNAL/ NOISE | 106dB |
SLEW RATE | 83v/μs |
DAMPING FACTOR | 560:1 |
FUSE | T15A |
POWER SUPPLY | 220V 50/60Hz |
INPUT SENSITIVITY | 0.775V, 1.0V, 1.55V |
THD+N | ≤ 0.01% @ 8Ω 1kHz |
NET WEIGHT | 24.5 Kgs |
DIMENSIONS | (W)483mm x (D)436mm x (H)90mm |
